QleanAir FS 35 High Protection HEPA
Quietly filtering and
degrading virus and bacteria from the air at
HEPA efficiency rate
QleanAir FS 35 High Protection HEPA is an efficient, easy-to-place air cleaner with a small footprint, developed in close dialogue with the healthcare industry. It produces large volumes of HEPA 13 filtered air at a low sound level, to not disturb your conversation, concentration, or sleep. The air cleaner uses certified HEPA 13 filters, filtering at least 99.95% of the most elusive particles such as viruses and bacteria. The specialized filters in this version of the FS 35 are based on nanotechnology that degrades viruses and bacteria. Within 30min, more than 99.99% of all bacteria and viruses are inactivated. This makes the FS 35 High Protection HEPA highly suitable for critical applications such as healthcare and care facilities.
Key components of the FS 35 High Protection HEPA air cleaning solution
- Multi-stage mechanical filtration with HEPA 13 and ePM1 50% (F7) filters according to EN 1822 and ISO 16890 standards
- High Protection HEPA 13 filtration with nanotechnology which binds, inactivates, immobilizes, and degrades microbes
- Quiet operation, 18-47 dB(A)
- Airflow of up to 870 m3/h
- Constant airflow regulation
- Standby timer for energy efficient operation
- Boost functionality for quick cleaning of the air in a room
- Can be equipped with hospital graded wheels for easy mobility, and active carbon filter for gases and odors
- Operates independently of heating, ventilation, and air-conditioning systems
- Lifetime Performance Guarantee, i.e., preventive service to ensure function and efficient air cleaning over time
Recommended areas
of application
The FS 35 High Protection HEPA was developed to protect the staff and patients in healthcare and care facilities, for example intensive care units, infection wards, waiting and emergency rooms. Providing healthy indoor air and reducing the risk of airborne viruses and bacterial spread is vital in these facilities. The FS 35 High Protection HEPA is equipped with a certified HEPA 13 mechanical filter that captures and quickly degrades viruses and bacteria. This capability provides an extra layer of protection for patients, staff, and maintenance personnel in these critical facilities. Fitted with the optional gas filter, this air cleaner can also remove bad odors and a broad spectrum of gases that sometimes occur in these premises.
Benefits
The FS 35 High Protection HEPA air cleaner delivers large quantities of HEPA 13 filtered air while having a quiet operation. The air cleaner captures and quickly degrades viruses and bacteria, protecting patients, staff, and maintenance personnel in critical healthcare facilities. The combination of mechanical filters, constant airflow regulation and preventive service ensures consistent performance over time. The boost function enables quick cleaning of the air in the room. The standby timer allows for operation of the unit when needed, reducing energy consumption. The unit works independently of the ventilation system and uses the standard power socket. FS 35 has a slim design and can be equipped with robust hospital graded wheels, making it easy to place and relocate when necessary. QleanAir FS 35 is delivered with our unique Lifetime Performance Guarantee. Installation, preventive service, spare parts, and filter media are included.
Safe and healthy
indoor air
HEPA 13 filtration captures and
degrades viruses and bacteria
Powerful
and quiet
Constant airflow
regulation
Hassle-free
installation and use
Lifetime Performance
Guarantee

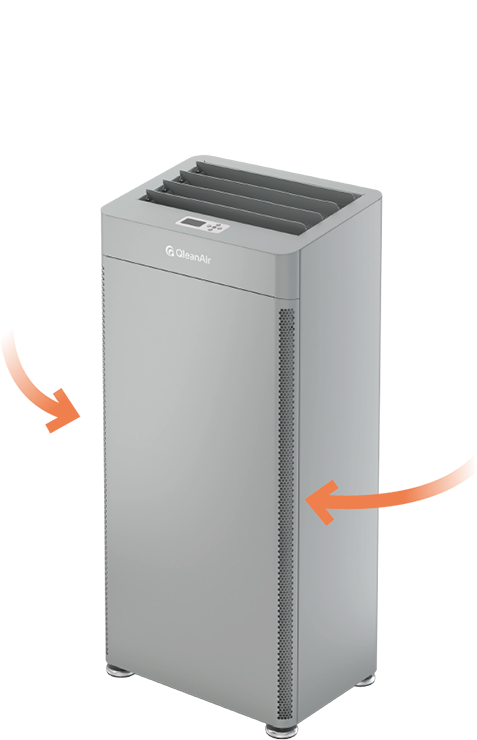

The technology behind the solution
1. Air inlet
FS 35’s air inlets are located on the sides on the front for unobstructed and optimal intake. The inlets are protected by a front cover to minimize the sound level of the unit.
2. Filtration of particles
With the help of a multi-stage mechanical filtration system using ePM1 50% (F7) and High Protection HEPA 13 filters, airborne particles are captured and removed from the air. Carbon filter for gases and odors can be added as an option.
3. Cleaned air is returned to the environment
After the air has been cleaned from harmful particles, it is returned to the room. The air outlet, located on the top of the unit, is designed to efficiently distribute the air in the room.
Compliant with the new VDI expert recommendation
QleanAir FS 35 High Protection HEPA is compliant with the new expert recommendation VDI-EE 4300-14 for air cleaners. Reducing aerosol levels in the room by 90% in 30 minutes, quiet operation and without disturbing turbulence in a design that resists unauthorized changes of settings.
| Model | QleanAir FS 30 High Protection HEPA |
|---|---|
| Color | |
| Dimensions (w x h x d) | 600 × 1296 × 418 mm |
| Dimensions on wheels | 600 x 1363 x 418 mm |
| Material | Powder coated sheet metal |
| Weight | 60 kg |
| Installation | Stationary or mobile |
| Performance levels | Automatic air flow regulation or 17 speed positions |
| Alarm functions | Filter full/Fan failure/Safety shutdown |
|
|
|
| Airflow | Up to 870 m3/h |
| Pre-filter | ePM1 50% (F7) |
| Main filter | HEPA 13 |
| Gas filter | Optional* |
|
|
|
| Sound level | 18-47 dB (A) |
| Power supply | 220-240 V, 50-60 Hz, 1.4 A |
| Energy consumption | 9-185 W |
|
|
|
| Certifications |        |
| Model: QleanAir FS 30 High Protection HEPA |
|---|
| Color |
| Dimensions (w x h x d) |
| 600 × 1296 × 418 mm |
| Dimensions on wheels |
| 600 x 1363 x 418 mm |
| Material |
| Powder coated sheet metal |
| Weight |
| 60 kg |
| Installation |
| Stationary or mobile |
| Performance levels |
| Automatic air flow regulation or 17 speed positions |
| Alarm functions |
| Filter full/Fan failure/Safety shutdown |
|
|
| Airflow |
| Up to 870 m3/h |
| Pre-filter |
| ePM1 50% (F7) |
| Main filter |
| HEPA 13 |
| Gas filter |
| Optional* |
|
|
| Sound level |
| 18-47 dB (A) |
| Power supply |
| 220-240 V, 50-60 Hz, 1.4 A |
| Energy consumption |
| 9-185 W |
|
|
| Certifications |
|
*Optional ePM1 50 % activated carbon gas prefilter
